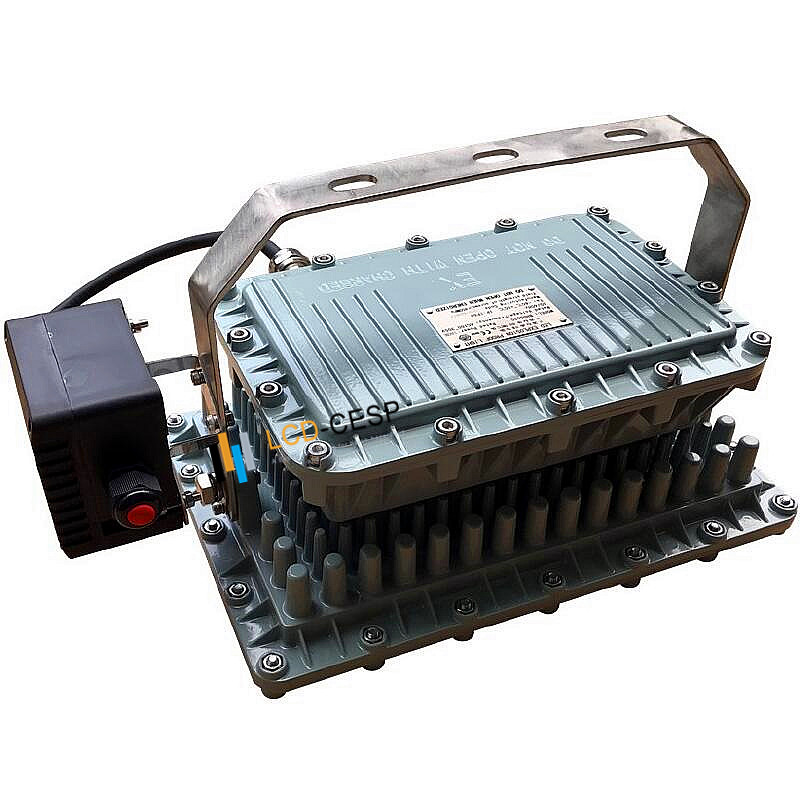

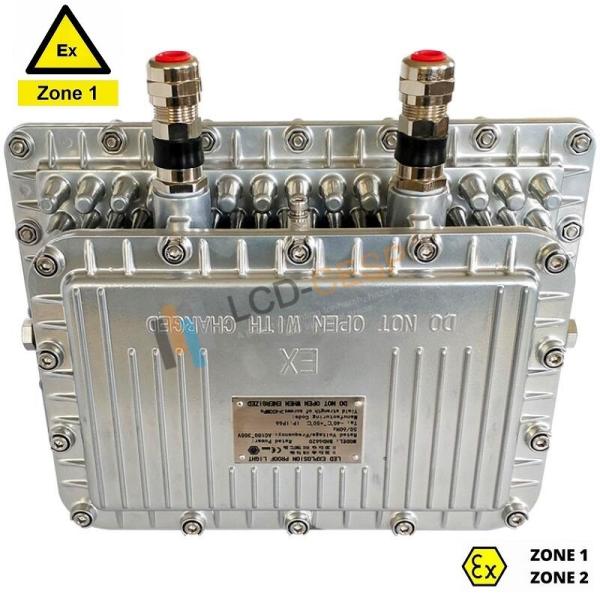

6500K Explosion Proof LED Flood Light

Brand Name : LCD-CESP brand

Model Number : LCD-BHD662-153

Certification : CE RoHs SAA ETL UL ATEX IECEx UL844

Place of Origin : SHENZHEN, CHINA

MOQ : 1pcs

Price : usd

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000 piece/ month

Delivery Time : 5-12 work day

Packaging Details : Carton box

Input voltage(v) : AC85-265V,DC12V,AC/DC 12/24V

Lifespan : 50000HR

Warranty(year) : 5 years warranty

Lamp body : Aluminum

Ip rating : IP66,IP65

Color temperature(cct) : 3000K, 4000K, 6500K

Contact Now

High lumen 140lm Explosion proof led high bay lighting 150W IP65

Designed for long lifetime

High ambient temperatures can drive the LED chip-temperature into a not permissible range.

This would reduce the life-span of the LEDs tremendously. LCD provides an enclosure design with large cooling pipes and a innovated heat reduction design. Tests done under the worst conditions have shown, that the LED-chip temperature is always below critical values. The designed life span for the LED (L80) is more than 60,000 h even at +55°C ambient temperature.

Datasheets
Product Name 150W Explosion poof Light
Model No LCD-BHD662-155
Wattage 150w
Voltage 220v AC
Lumen 21000lm
Explosive atmospheres Zone1&22, zone 21&22
Ex Mark D II 2 G Ex db IIB T6 Gb
D II 2 D Ex tb IIIC T80°C Db IP66
Application Oil & gas, Refineries, Petrochemical facilities
Protective IP65
Warranty 5 Years
Certication IECEX, ATEX

Features:

  1. Due to the body made of aluminium with low content of copper and tempered glass, Atex Series floodlights, provided in a wide range of wattage and power, are ideally suited for ON and OFF-SHORE applications and all kinds of industries where there is a high level of corrosion, mainly for lighting wide areas.
  2. To increase further surface protection, upon request it is possible to apply an OFFSHORE painting cycle suitable for marine environments Standard floodlights are manufactured with symmetrical narrow beam reflector and symmetrical wide beam reflector upon request (ordering codes upon request).
  3. For ease of installation and maintenance, the luminaire features an integral Ex e connection box and AISI304 stainless steel universal mounting bracket.6500K Explosion Proof LED Flood Light

Installation

• Mounting options include:
• Adjustable U-Bracket for ceiling, wall, etc.
• Pendant
• For installations where power surge may be possible, NICOR recommends installing additional
surge protection at the electrical distribution panel

6500K Explosion Proof LED Flood Light

Photometric Data (LIGHT DISTRIBUTION CURVE)

6500K Explosion Proof LED Flood Light

6500K Explosion Proof LED Flood Light

6500K Explosion Proof LED Flood Light

6500K Explosion Proof LED Flood Light

Full Ranging:

　Item Name BHD662-085 BHD662-105 BHD662-125 BHD662-155 BHD662-165
Type Examination Certificate TUV 18 ATEX 8298 X
IECEx Certificate of conformity IECEx TUR 18.0064 X
Marking accd. 2014/34/EU D II 2 G Ex db IIB T6 Gb / D II 2 D Ex tb IIIC T80°C Db IP66
Marking accd. to IECEx Ex db IIB T6 Gb/ Ex tb IIIC T80°C Db
Permissible ambient temperature T -30 °C up to +55 °C
LED lifetime L80 >200,000 h @ 25 °C / 60,000 h @ +55 °C
Driver lifetime C10 >100,000 h @ 25 °C / 60,000 h @ +55 °C
Rated voltage 110 - 277 V AC / 127 - 270 V DC
Rated current 2) 0.24 A 0.48 A 0.72 A 0.96 A 1.44 A
Frequency 0/50 - 60 Hz
Power factor cos ϕ 1) ≥ 0.95
Circuit Electronic driver (Meanwell & Philips driver)
Protection class I
Light distribution Wide beam and narrow beam (asymmetric beam on request)
Light colour / CRI 6500 K / Ra >70 (other colours on request)
Enclosure colour grey / silver
Connecting terminals 3 poles standard (L, N, PE / up to 6 mm² / others on request)
Enclosure material Anodized copper-free Aluminium
Weight 　11KG 　11KG 　12KG 　12KG 　12KG
Cable glands / gland plates /enclosure drilling 2 x M25 (Ex-e) metal thread nickel plated (E01) or 2 x M25 (Ex-e) threaded plug (E05),(others on request)
Degree of protection accd. to EN 60529 IP66 / 67
Protective cover Toughened glass, clear (protective bowl on requests)
Swivel bracket Carbon steel with anti-corrosion powder coating and AiSi 316L stainless steel (on requests)
