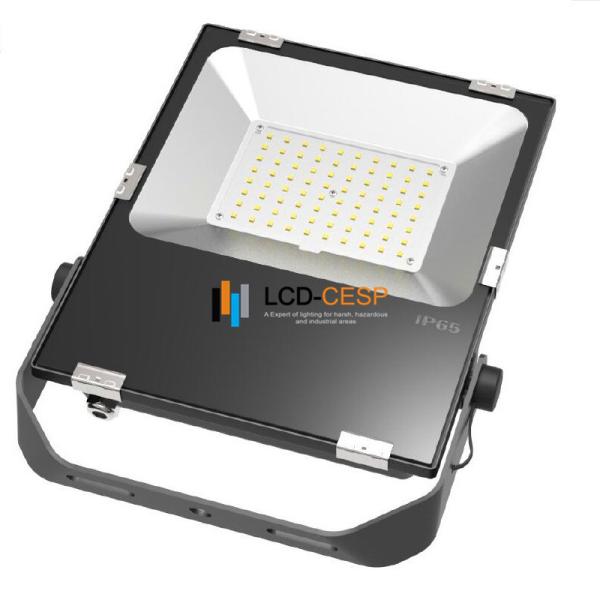

IP66 LED SMD Flood Light

  • 1
  • 2

Brand Name : LCD-CESP

Model Number : LCD-FS-083 / 085

Certification : CE RoHs SAA ETL UL TUV

Place of Origin : SHENZHEN, CHINA

MOQ : 1pcs

Price : usd

Payment Terms : T/T, Western Union, L/C

Supply Ability : 5000pcs/ month

Delivery Time : 5-12 work day

Packaging Details : Carton box

Application areas : Car park , Logistical areas , airports , ports , trains , Sport facilities , Tunnel , billboard , High mast application , Roundabouts , warehouse , work site , etc

Structures and materials : die-cast and sheet metal aluminium body , stainless steel screws and brackets available

Optical cover : tempered low-iron glass

Power Fact : 0.95

Frequency : 50/60hz

Cri (ra>) : 80

Contact Now

90 Degree LED SMD Flood Light

Symmetric wide angle 90 degree 80W LED SMD Flood Light IK08 for security Lighting

Application of our IP65 LED Flood Light Reflectores

  • Tunnel, Subway, Underground Lighting;
  • Gymnasium, Sports Stadium Lighting;
  • Building, Billboard Lighting;
  • Gas Station, Garage Lighting;
  • Park, Garden Lighting;
  • 80W LED lamp Workshop, Factory Lighting;
  • Warehouse, Storage Lighting;
  • Yard, Square Lighting;
  • Road, Highway Lighting;
  • Station, Dock, Deck, Ship, Boat Lighting;

Features of our IP65 LED Flood Light Reflectores

  • 4 lumen packages
  • Wet Location
  • IP66
  • NEMA 4X
  • Steel mounting yoke standard
  • Slipfitter accessories for mounting flexibility
  • 3000K, 5600K color temperatures
  • Visors and wire guards available
  • 120v-480

FS Family

Item 10W 20W 30W 50W 80W 100W 150W 200W
Input Voltage 90-265VAC or 12-28VDC
Input Current 0.05A 0.1A 0.15A 0.23A 0.38A 0.48A 0.7A 0.93A
Power Efficiency >89% >89% >89% >95% >97% >97% >97% >97%
LED Consumption 9W 18W 27W 45W 72W 91W 135W 185W
System Consumption 10W 20W 30W 50W 80W 100W 150W 200W
Power Factor >0.95
Total Harmonic Distortion THD< 20%
Dimmable 1-10V , DALI ,Triac on requests
Power Line 1.0m㎡three line
Chip Brand LUMILEDs/CREE/Bridgelux / OSRAM (SMD3030) / SMD5050 on requests
LED Encapsulation 12LEDs 24LEDs 36LEDs 60LEDs 96LEDs 120LEDs 180LEDs 240LEDs
Rated LED Efficacy 160-180 lumen/w
Luminous Efficiency 130-160 lumen/w
Color Temperature 3000K / 4000K / 6500K
Luminous Output (Typ.) 1350lm 2700lm 4050lm 6750lm 10800lm 13500lm 20250lm 27000lm
CRI Ra> 80
SCDM SDCM <5
Lumen Maintenance > 80%@50,000h



Operating and Electrical
Input Voltage 100 to 277 VAC or 12-28 VDC
Input Frequency 50 to 60 Hz
Inrush current 340 A
Inrush time 0.025 ms
Power Factor (Min) >0.95

Controls and Dimming
Dimmable on requests 1-10V , DALI , Triac

Mechanical and Housing
Housing Material Aluminum die-cast 6063
Reflector material Polish Aluminum
Optic material Acrylate
Optical cover 4mm temper Glass
Fixation material corrosion resistant powder coating carbon Steel
Mounting device Mounting bracket adjustable
Optical cover Flat
Optical cover Clear

Dimensional drawing
IP66 LED SMD Flood Light

Installation & Mounted and package list

IP66 LED SMD Flood Light


Photometric data

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light

IP66 LED SMD Flood Light
