Underwater Marine LED Flood Lights

Brand Name : LCD-CESP brand

Model Number : LCD-FA-305-LNXXX

Certification : CE RoHs SAA ETL UL TUV

Place of Origin : SHENZHEN, CHINA

MOQ : 1pcs

Price : usd

Payment Terms : L/C, T/T, Western Union

Supply Ability : 5000 piece/ month

Delivery Time : 5-12 work day

Packaging Details : Carton box

Light source : LED,Lumi Leds 5050 220Lm/w

Beam angle(°) : 7, 15, 30, 60,90,120,TYPE II, TYPE III, TYPE V

Color temperature(cct) : warm white(2700-3500k)Pure white(4000-4500k)Cool white(6000-6500k)

Product Name : led boat floodlight 300w

Shape : Square size

Type : Flood

Contact Now

Asymmetric 40 Degree Square Underwater Led Boat Lights

led boat flood lights 300 watt asymmetric 40 degree AC90-305V 49500lm IP67 IK09​


Performance
• Rated luminous flux range: 11,600 to 53,475 lm
• Rated luminaire efficacy: Up to 155lm/W
• Rated median useful life and the associated rated LM factor
L80B50: > 110.000 hours
• Rated abrupt failure value: 10.79%
• Photometric code: 840/449, 765/449
• Lumen maintenance code: 9
• Rated ambient temperature (tq) related to performance for
a luminaire: 25°C
• Rated median useful life and the associated rated LM factor:
L80B10 > 105.000 hours
*Definitions and tolerances according to IEC62722-2-1:2014

Item List

Luminaire Number of LEDs Current (A) Luminaire output flux (lm) 3000K Luminaire output flux (lm)4000K Luminaire output flux (lm)6500K Power consumption (W) Luminaire efficacy (lm/W)
FA-085/105/155 36/48 2.05 21750 22500 23250 80W /100W/150W up to 155lm/w
FA-205 72 3.11 29000 30000 31000 200W up to 155lm/w
FA-255 96 2.34 36250 37500 38750 250W up to 155lm/w
FA-305/355 144 6.0 49300 51000 52700 300W/350W up to 155lm/w


ELECTRICAL INFORMATION
Input voltage and frequency: 100-277VAC, 50-60Hz
• Electrical Class I EU
• Power factor >0.95
• Surge protection options (kV): 2KV / 4KV / 6KV
• Electromagnetic compatibility (EMC):EN 55015:2013/A1:2015, EN 61000-3-2:2014, EN 61000-3-3:2013, EN 61547:2009, EN 62493:2015
• Control protocol(s) :1-10V, DALI
Standards and regulation
CE, Directive 2014/30/EU, 2014/35/EU ,2009/125/EC
1194/2012/EU, 2011/65/EU, EN 60598, EN 62471, EN 55015,
EN 61000-3-2, EN 61000-3-3, EN 62493, EN 61547.
Other options available
Optional precabling
Other RAL colours available on request


Product DIMENSIONS

Item Name AxBxC (MM)
FA-085/105/153 IP67 flood light 389.2x296.7x57
FA-205 IP67 flood light 436.6x345.7x57
FA-255 IP67 flood light 436.6x345.7x57
FA-305/353 IP67 flood light 582x385x60


Weight (kg ):

Item Name Weight (KG)
FA-085/105/153 IP67 flood light 3.4
FA-205 IP67 flood light 4.8
FA-255 IP67 flood light 7.2
FA-305/353 IP67 flood light 7.5

Underwater Marine LED Flood Lights

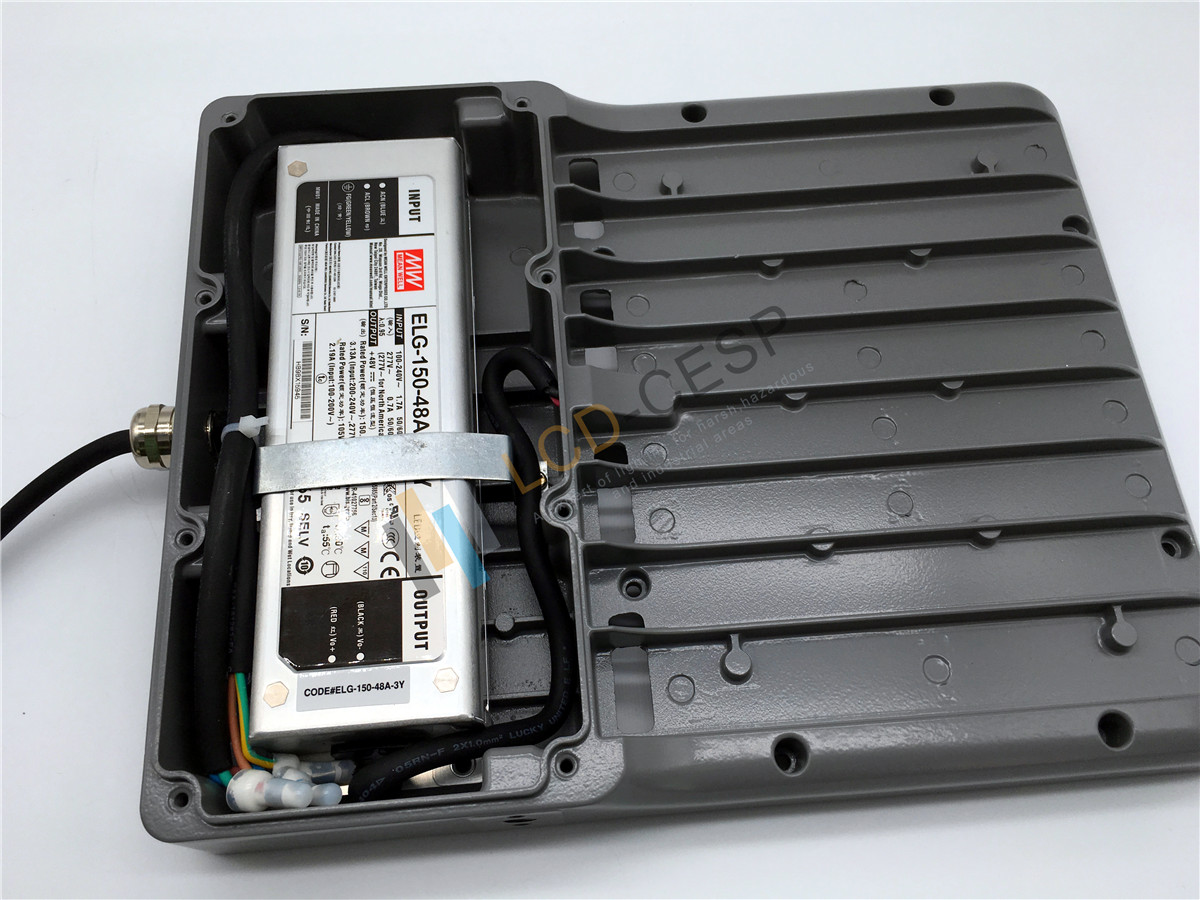

Product Construction
Underwater Marine LED Flood Lights

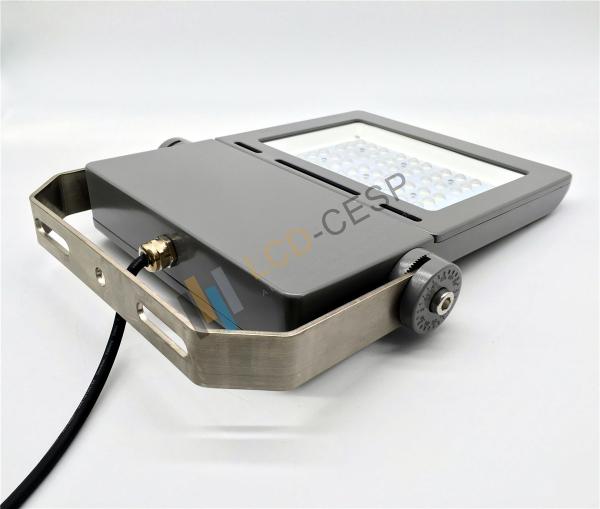

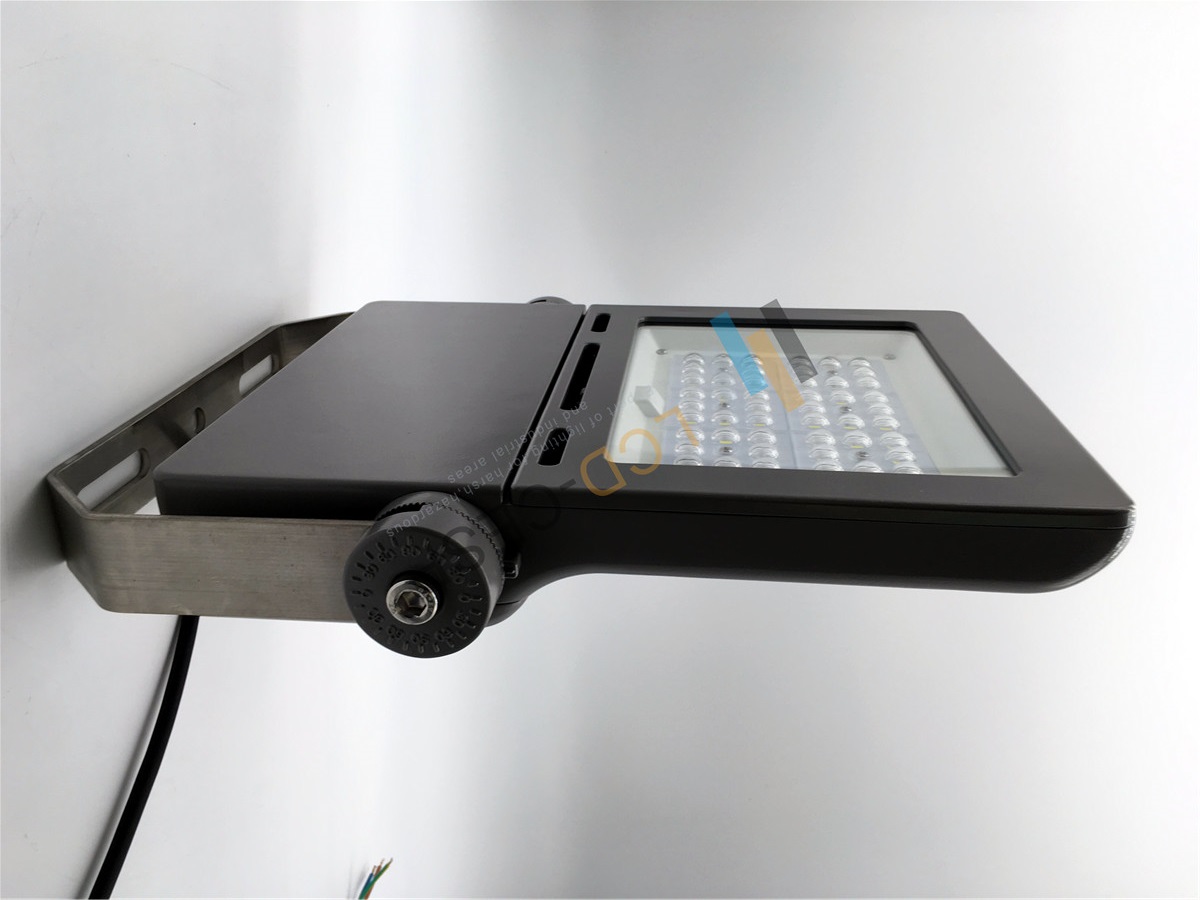

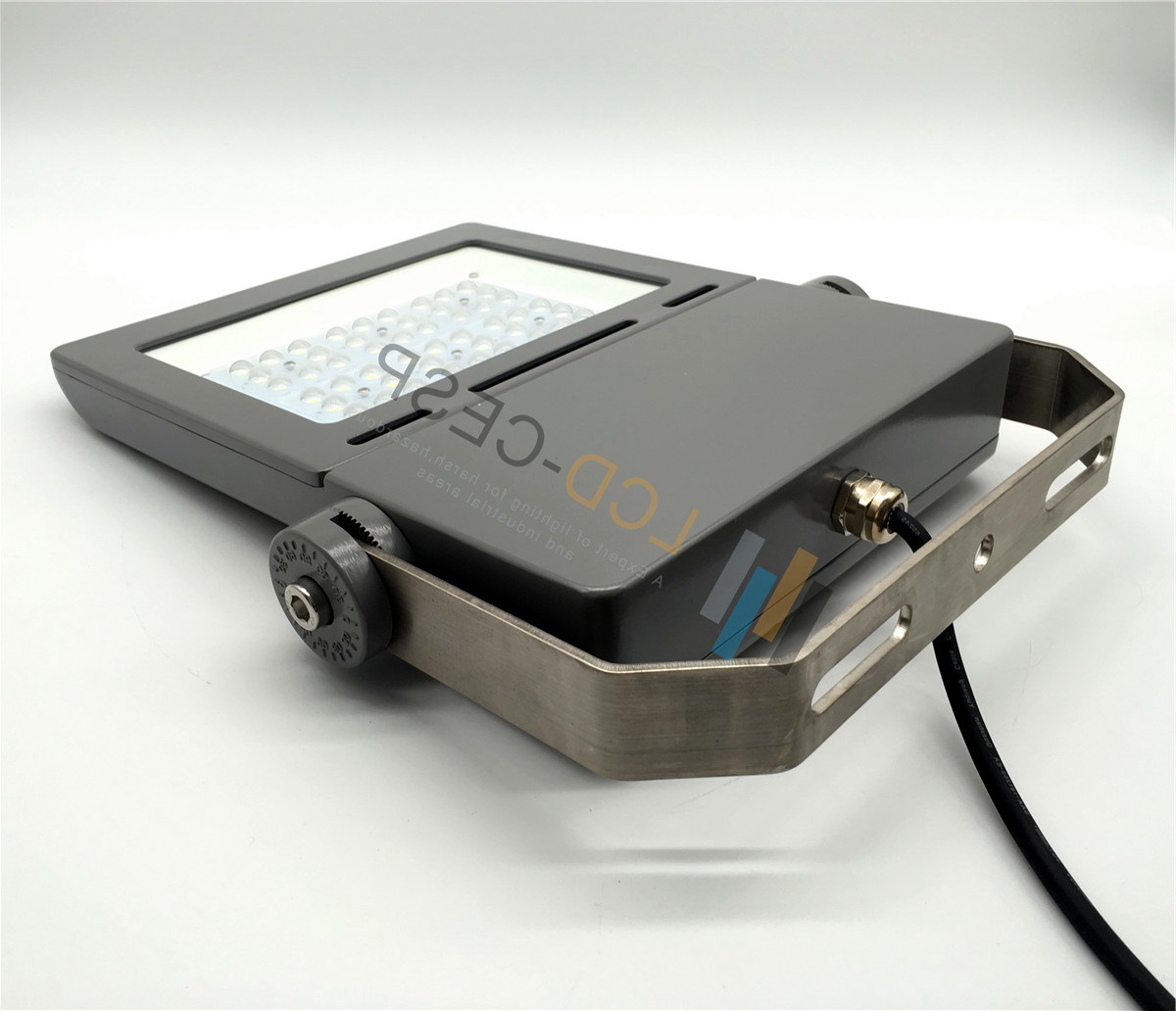

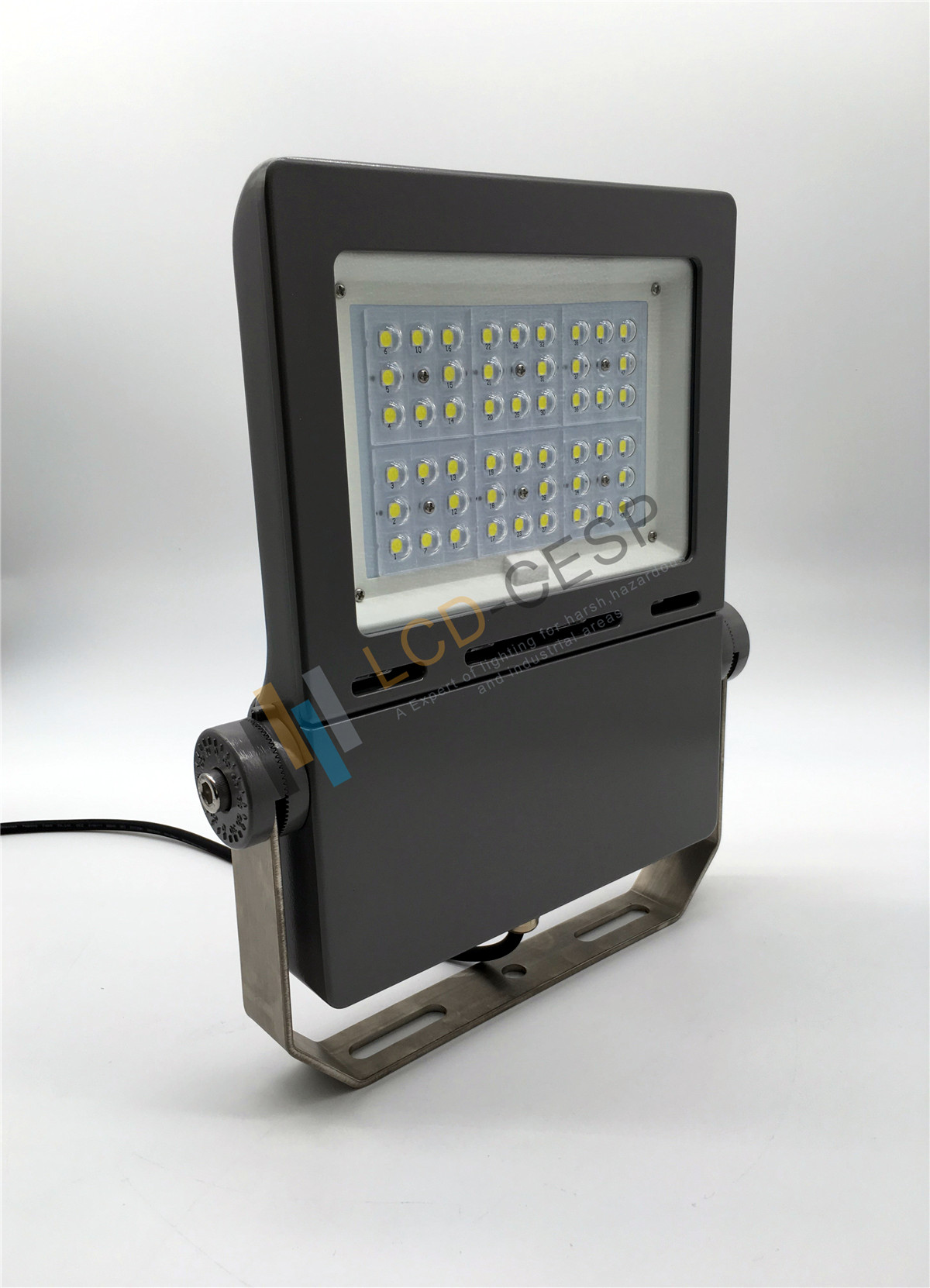

Product Photos

Underwater Marine LED Flood Lights
Underwater Marine LED Flood Lights

Underwater Marine LED Flood Lights

Underwater Marine LED Flood Lights

Underwater Marine LED Flood Lights
